Creating and Destroying Network Objects

VIROO provides the necessary tools for managing network objects. This section covers the essential concepts of creating and destroying network GameObjects in VIROO.

If GameObjects are instantiated with Unity's own methods (Instantiate function), they will be created individually for each of the users. To get GameObjects instantiated for all the users of the session, with their attributes synchronized, it is necessary to create them as explained in this article.

Create NetworkObject

There are several ways to create a networked object in VIROO:

Using the CreateObjectAction component.
By code making a custom Script.

In both cases, the prefab that is to be instantiated should be registered in a Prefab Instantiable Container.

Prefab Instantiable Container

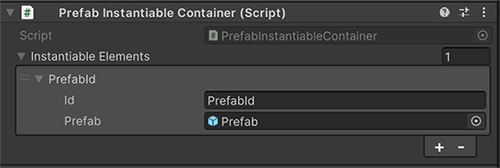

Add a PrefabInstantiableContainer component to any GameObject in your scene. Add your prefab to the Instantiable Elements list and assign and Id to it.

Using CreateObjectAction

VIROO provides you with an action so that you can instantiate GameObjects across the network in a synchronized manner. For more information go to Create Object Action.

Custom Code

The following explains how to instantiate a prefab over the network from code. In the script that will be used to instantiate the prefab, you must inject the necessary services to create objects across the network, in this case, INetworkObjectsService.

private INetworkObjectsService networkObjectsService;

protected void Inject(INetworkObjectsService networkObjectsService)
{
    // The INetworkObjectsService is stored for later use
    this.networkObjectsService = networkObjectsService;
}

protected void Awake()
{
    // This method call will trigger the Inject method to be called
    this.QueueForInject();
}

Then, to create the GameObject, just need to use the CreateDynamicObject method.

UnityCreateSingleSessionObjectResponse createSessionObjectResponse = await networkObjectsService.CreateDynamicObject(
    objectId, // the id of the prefab to instantiate
    transform.position,
    transform.rotation,
    requestAuthority: true, // wether the creator of the object should be given authority over the object automatically
    isPersistent: true, // if set to false, the object will be automatically destroyed when its creator disconnects
    SceneManager.GetActiveScene().name);

Tip

As the action of creating the object is already produced automatically by the network, it is important that the create object method is only executed on a single client. For this we can use the authority or we can look at who is the first user in the session using ISessionClientsProvider interface.

if (sessionClientsProvider.SessionClients.First().IsSelf)
{
  // Do stuff
}

If the object you want to create does not have a NetworkObject, the system will add it automatically, since it is a necessary component to identify the network objects.

Finally, accessing the created object can be done through the response obtained from the CreateDynamicObject method.

if (createSessionObjectResponse.Success)
{
    NetworkObject createdNetworkObject = createSessionObjectResponse.InstantiatedObject.GameObject.GetComponent<NetworkObject>();
}

Tip

Take into account that since the reference to the GameObject is being obtained from the return value of the CreateDynamicObject method, this changes will only occur in that user's VIROO Application. For example, if a component is added by code to that GameObject, only the local player that called the method will have that component added to the GameObject. In order to make changes in all user Applications, consider using other synchronization methods supplied by VIROO, like Actions.

Destroy NetworkObject

Destroying a networking object can be done by code, using the same interface that is used to create networking objects, INetworkObjectsService.

To do so, inject the necessary services to create objects across the network, in this case, INetworkObjectsService.

private INetworkObjectsService networkObjectsService;

protected void Inject(INetworkObjectsService networkObjectsService)
{
    // The INetworkObjectsService is stored for later use
    this.networkObjectsService = networkObjectsService;
}

protected void Awake()
{
    // This method call will trigger the Inject method to be called
    this.QueueForInject();
}

Then, to destroy the network GameObject object, use the DestroyObject method. To do this, a reference to the NetworkObject of the object to be destroyed is needed.

private async Task DestroyNetworkObject(NetworkObject networkObject)
{
    await networkObjectsService.DestroyObject(networkObject);
}
